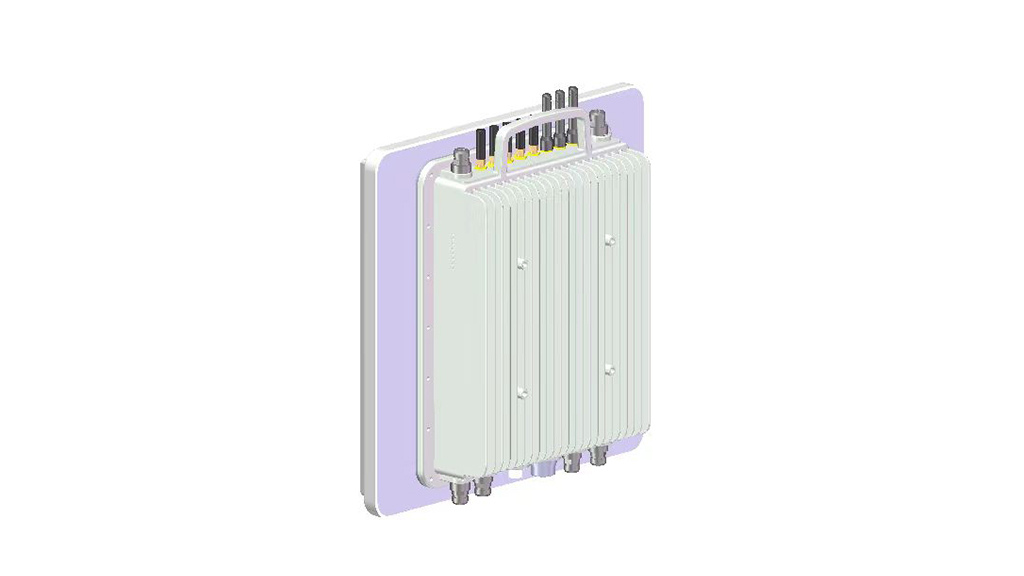

BQX-CJ-B18M-C3X Base Station Information Collector

BQX-CJ-F100 Mobile Micro Hotspot Acquisition Device Product Introduction The BQX-CJ-F100 is a specialized Signal Management Equipment designed for efficient 4G/5G network monitoring. This Signal Ac……

Send Inquiry

Functional characteristics

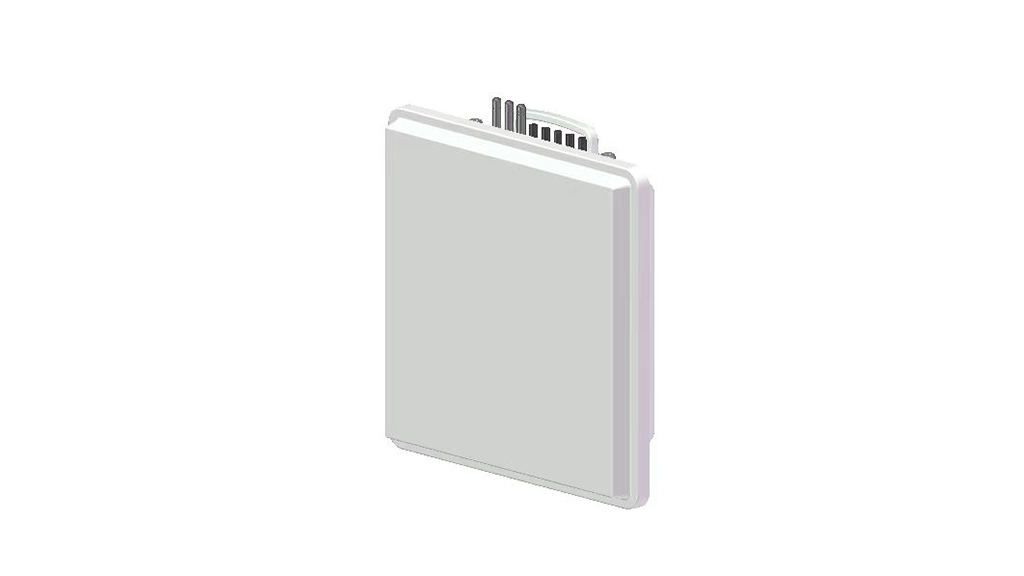

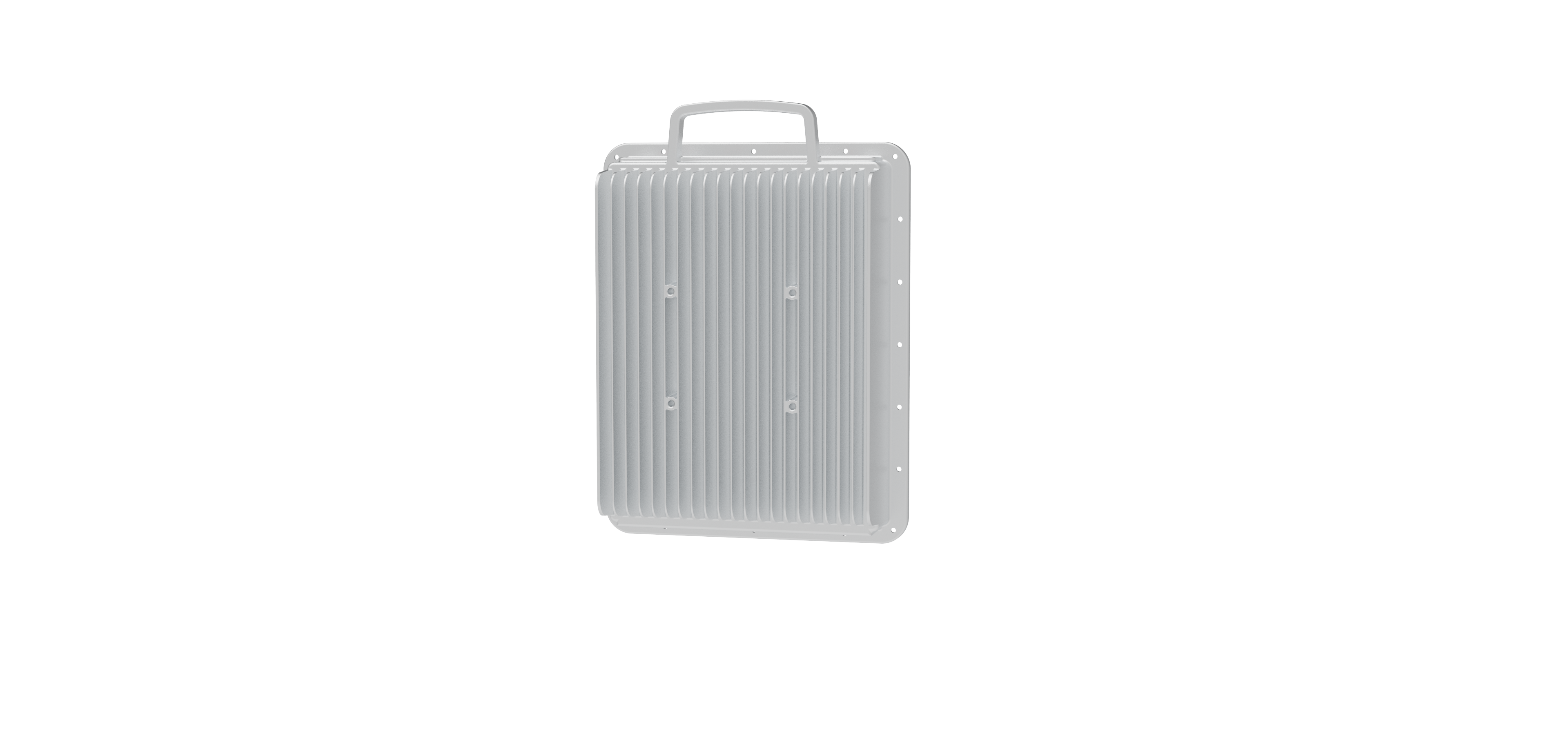

BQX-CJ-F100 Mobile Micro Hotspot Acquisition Device

Product Introduction

The BQX-CJ-F100 is a specialized Signal Management Equipment designed for efficient 4G/5G network monitoring. This Signal Acquisition solution captures IMSI information from user terminals across all major Chinese operators (Mobile, Unicom, Telecom, Broadcast TV). Functioning as a dedicated Base Station Information Collector, it enables real-time data upload for backend analysis, supporting multidimensional applications including trajectory analysis and security management. With Signal Monitoring capabilities, remote maintenance features, and power failure alerts, this Electronic Perimeter Surveillance device ensures reliable Mobile Signal Interception in various operational environments.

Core Features

Full Operator Support

Comprehensively captures IMSI, IMEI, prefix numbers, network types from all Chinese carriers (IMSI Catcher)

Multidimensional Data Application

Supports trajectory analysis, security management, key user protection, and illegal user tracking

Remote Management & Updates

Automatic alert reporting to backend with remote maintenance and version upgrade capabilities

Power Failure Alert

Immediate notification to management during power outages for uninterrupted Signal Monitoring

Real-time Data Upload

Instant backend transmission of captured data for comprehensive dataset enrichment

Rapid Capture & Release

≤1 second device capture with 0.1s release cycles for efficient Signal Acquisition

Covert Installation

Built-in antennas ensure unobtrusive deployment for discrete Electronic Perimeter Surveillance

Flexible Power Supply

DC12V-15A support enables stable operation in diverse environmental conditions

Performance Specifications

Parameter	Specification
Product Name	4G/5G Micro Hotspot Acquisition Device
Supported Operators	China Mobile, Unicom, Telecom, Broadcast TV
Acquisition Type	IMSI
Carrier Count	4 carriers
Operating Frequencies	4G: B1/B40 5G: N41/N78
Operating Bandwidth	5G: 20MHz 4G: 5MHz
Output Power	0-2W (multi-level adjustable)
Antenna Type	External antennas
Coverage Range	>100m (public network signal strength: -80dBm to -90dBm)
Capture Rate	>95%
Target Acquisition Speed	>3000 groups/minute (high-density areas)
Reconnection Time	≤1s capture, 0.1s release cycle
Synchronization Method	GPS/BeiDou + Air Interface Sync
Backhaul Connection	Wired Ethernet, 4G, WiFi wireless backhaul
Storage Capacity	≈180 days
Power Supply	DC12V-15A
Power Consumption	≈70W
Dimensions	328×260×83mm
Weight	≈5.2kg (excluding mounting bracket & antennas)
Operating Temperature	-40°C to 55°C
Operating Humidity	10% to 95% RH
Waterproof Rating	IP67
Cooling Method	Natural convection
Disconnection Continuation	Supported
Power Failure Alarm	Supported

Operational Applications

This specialized Signal Detection Device excels in diverse security applications including criminal investigations and counter-terrorism operations. As part of an Electronic Perimeter Surveillance system, it provides critical Signal Monitoring for secured facilities and government complexes. The device supports trajectory analysis for law enforcement, security management for large-scale events, and unauthorized device detection in restricted areas. With its Signal Acquisition capabilities and natural convection cooling, it serves as a reliable component in permanent monitoring installations requiring continuous communication analysis.
