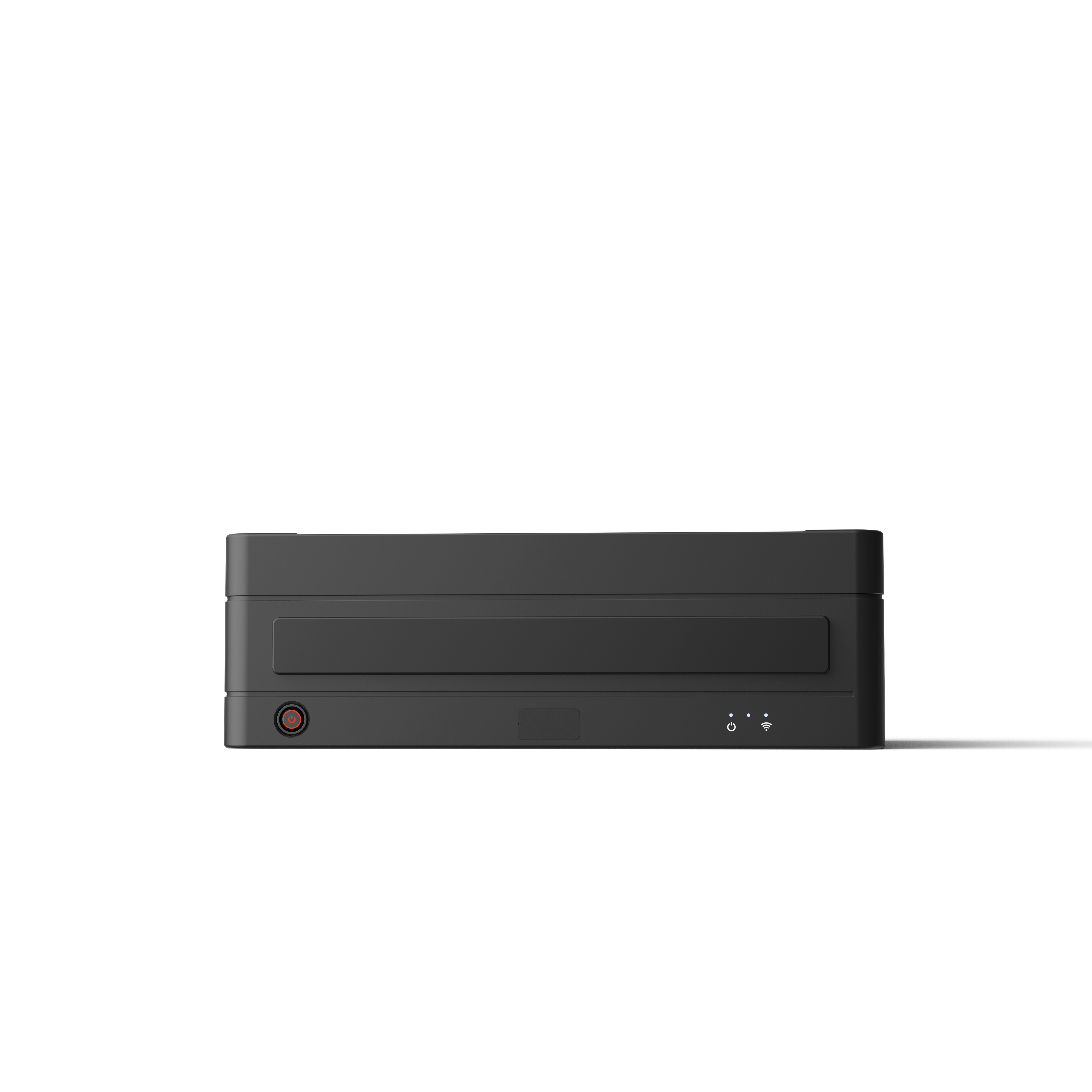

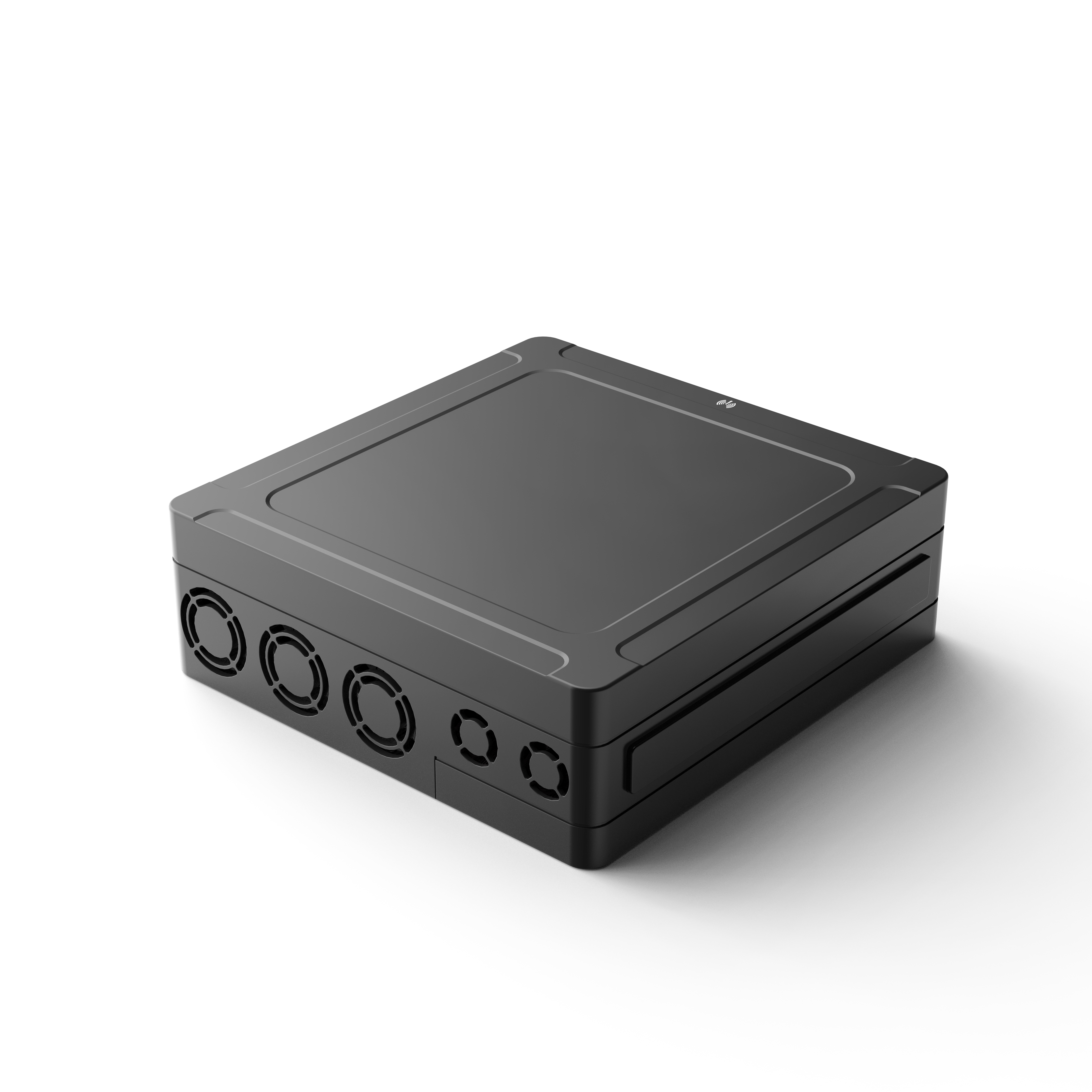

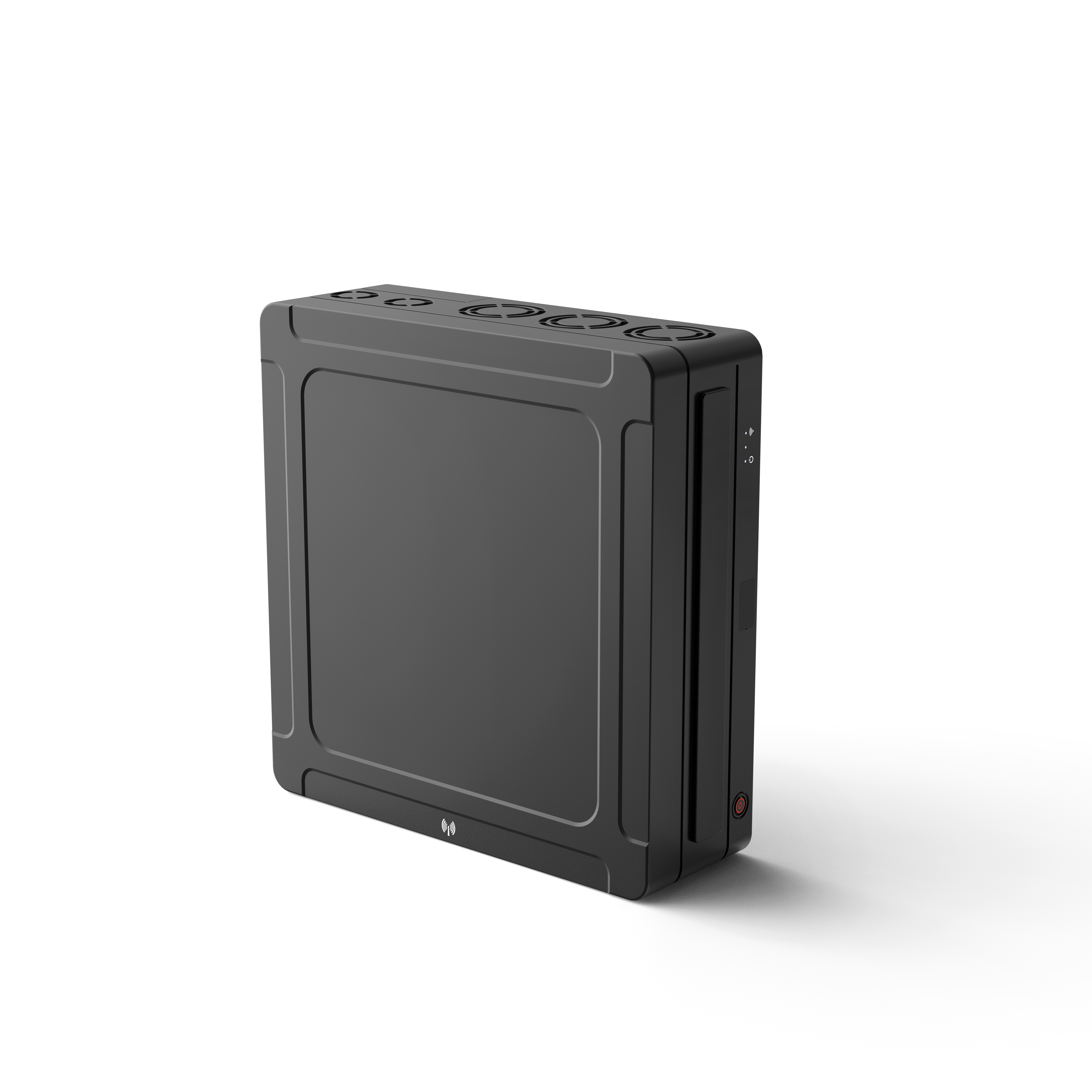

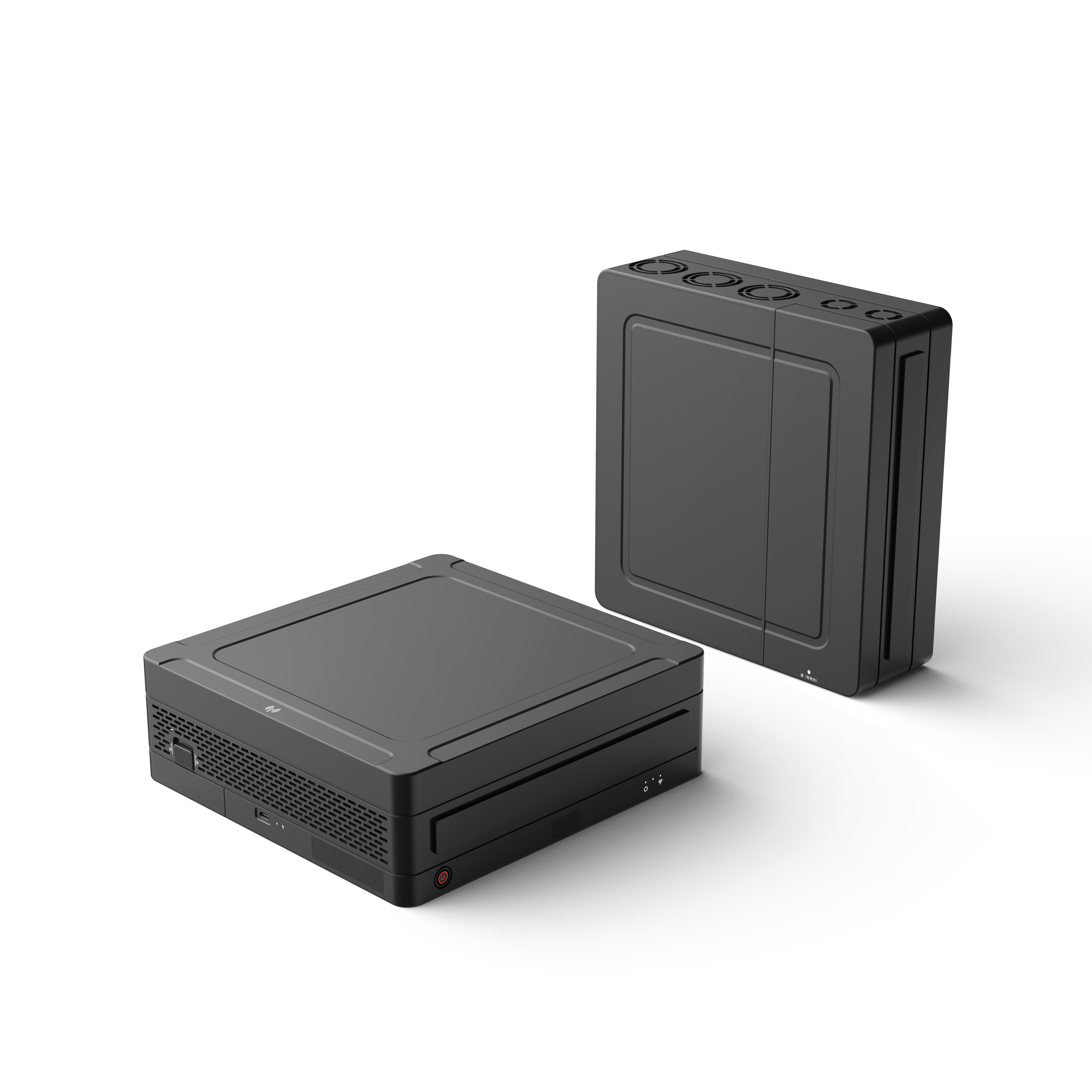

BQX-GK-C500 Vehicular Mobile Signal Management System

BQX-GK-C500 Vehicular Mobile Signal Management System Product Introduction The BQX-GK-C500 is an advanced Signal Management Equipment designed for comprehensive mobile communications control. This ……

Send Inquiry

Functional characteristics

BQX-GK-C500 Vehicular Mobile Signal Management System

Product Introduction

The BQX-GK-C500 is an advanced Signal Management Equipment designed for comprehensive mobile communications control. This vehicular IMSI Catcher addresses signal interference challenges using digital signal processing technology, providing integrated signal detection, positioning, and access control. Covering all 2G-5G frequency bands worldwide, this Electronic Perimeter Surveillance solution offers Signal Monitoring, Mobile Signal Interception, and selective blocking capabilities through intelligent whitelist management.

Core Features

Multi-Network Compatibility

Comprehensive 2G/3G/4G/5G coverage across FDD/TDD modes for global communication standards

Integrated Smart Control

Combines detection, positioning, and access control into a complete “Detect-Interrupt-Locate” workflow (Signal Detection Device)

Digital Signal Processing

Advanced algorithms overcome interference for precise signal detection and positioning (Signal Acquisition)

Whitelist Management

Ensure authorized communication while blocking unauthorized devices (Anti-Eavesdropping Device)

Intelligent Power Adjustment

Automatic adaptation to environmental changes with parameter optimization

High-Concurrency Operation

Simultaneous monitoring of multiple carriers across all major network technologies (IMSI/IMEI Catcher)

Technical Specifications

Parameter	Specification
Network Standards	5G-5SA/NSA, 4G-TDD/FDD, 3G-WCDMA, 2G-GSM
Frequency Bands	5G: N1, N28, N41, N78 4G: B1, B3, B5, B8, B34, B38, B39, B40, B41 3G: B1 2G: B3, B8
Transmit Power	40W per carrier
Carrier Capacity	27 simultaneous carriers
ACPR	-45 to -50dBc
EVM	Better than 8%
Out-of-Band Spurious	Complies with 3GPP specifications
Receiver Sensitivity	-104dBm
Receiver Dynamic Range	-30dBm to -104dBm
Coverage Radius	Up to 500m (environment-dependent)
Capture Rate	>97% average
Control Interface	Mobile App via WiFi
Deployment Method	Vehicular (Portable Base Station)
Power Requirements	AC220V, ≤600W max power consumption

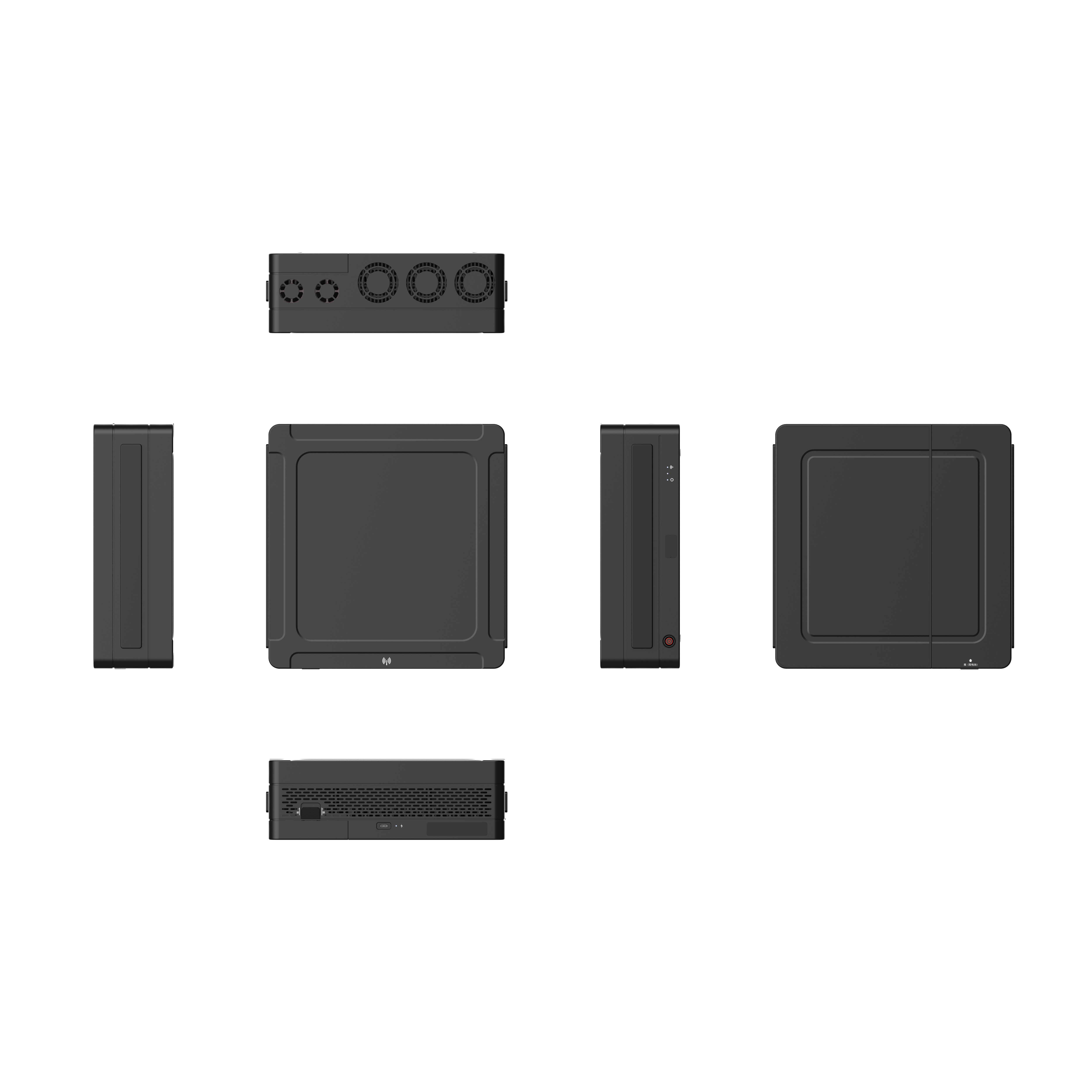

Dimensions	560×480×530mm (L×W×H)
Weight	<50kg
Materials	Aluminum alloy, ABS
Cooling System	Forced air cooling

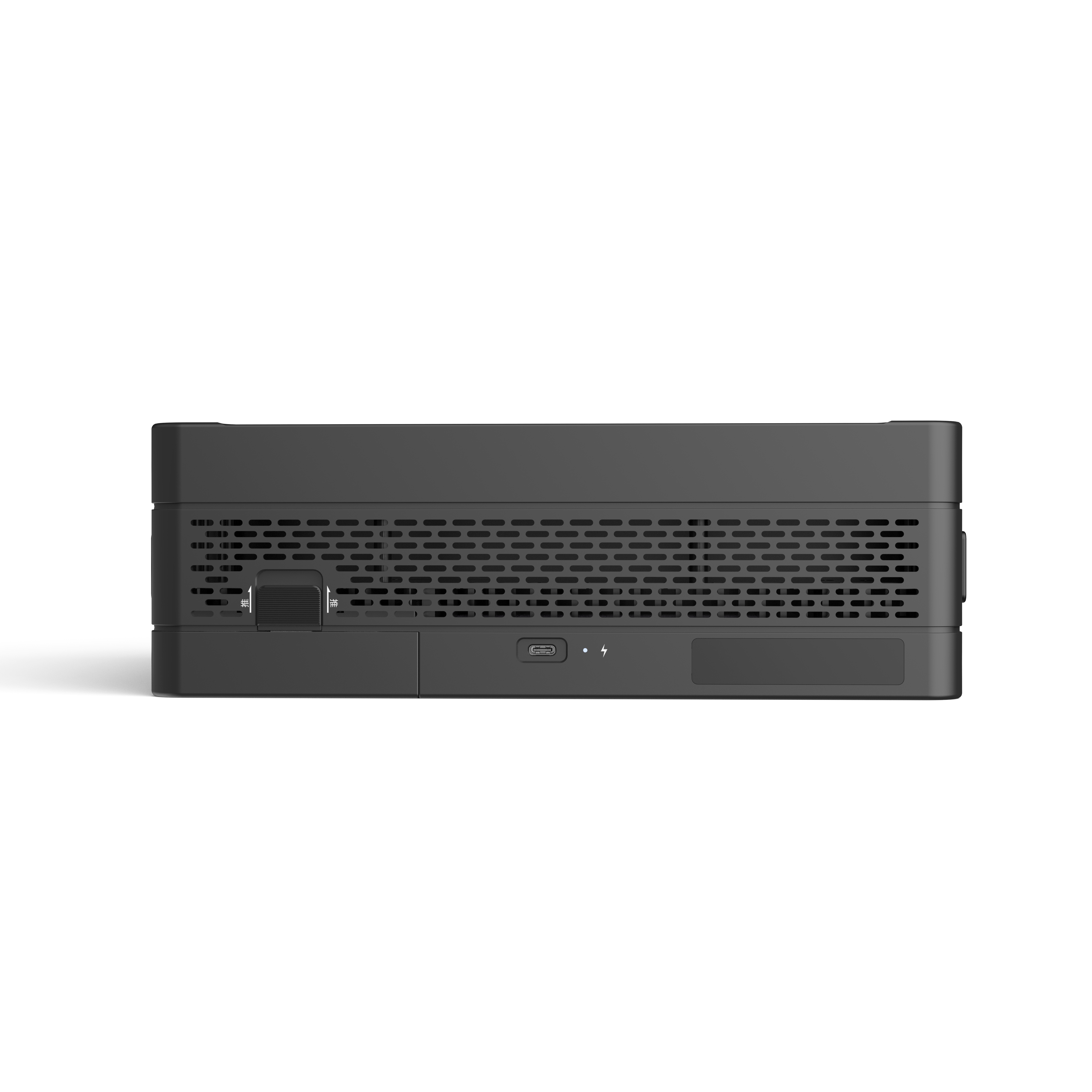

External Interfaces	Power input, power switch
Reliability	MTBF ≥20,000 hours
Operating Temperature	-20℃ to 55℃

Operational Applications

As a mobile Communications Base Station solution, this system provides critical Cell Phone Detection for law enforcement operations and secure facilities. The vehicular deployment enables rapid response security operations, protecting sensitive environments against unauthorized communications. Its high-power operation (40W per carrier) and multi-carrier capacity (27 carriers) ensure effective perimeter control in complex environments. Particularly valuable as part of an Emergency Communications System requiring robust signal management and monitoring capabilities for mission-critical security operations.
