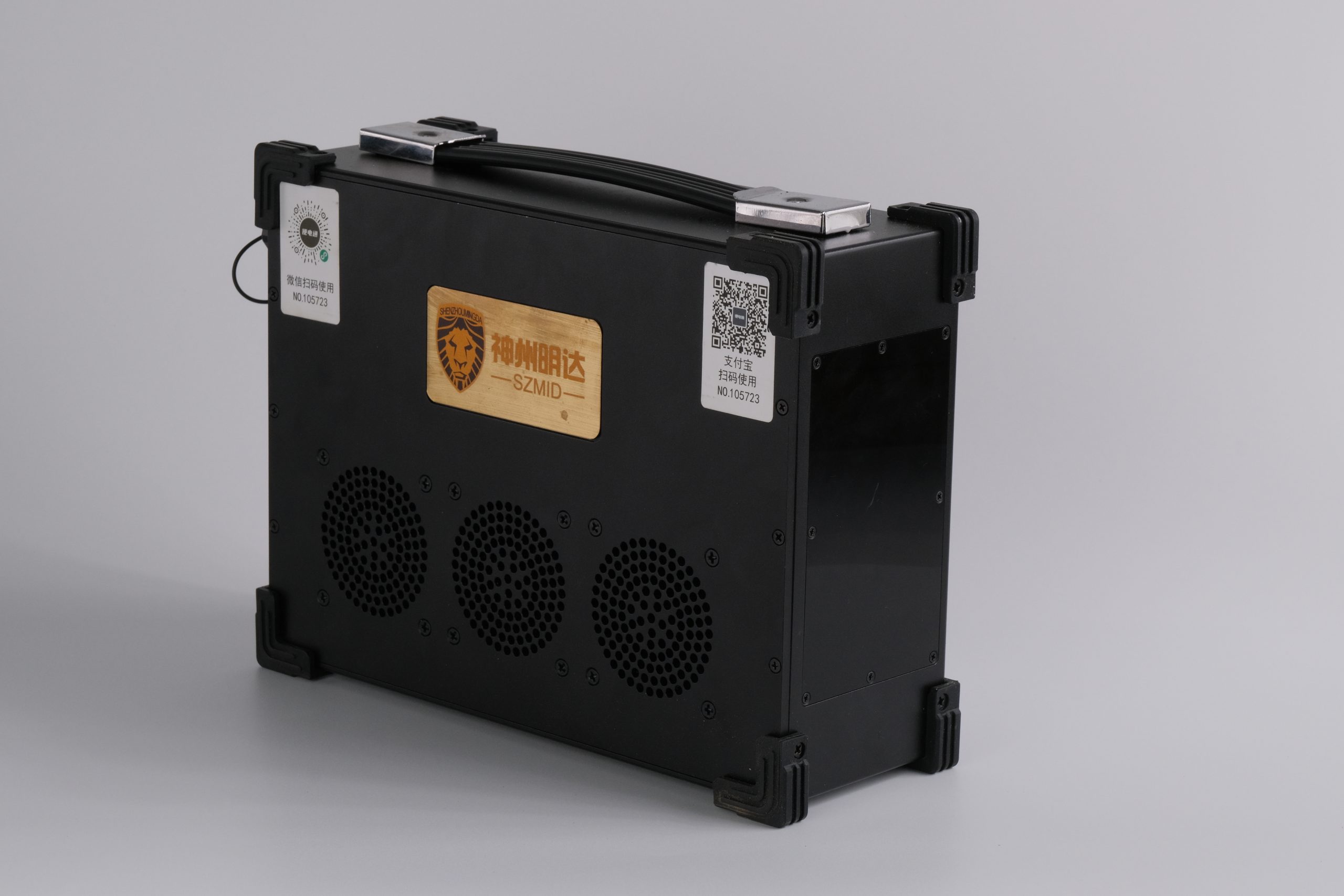

BQX-GK-B110 Handheld Signal Detection Device

BQX-GK-B110 Portable Signal Detection Device Product Introduction The BQX-GK-B110 is a cutting-edge Signal Management Equipment designed for field Cell Phone Detection and identification. This hand……

Send Inquiry

Functional characteristics

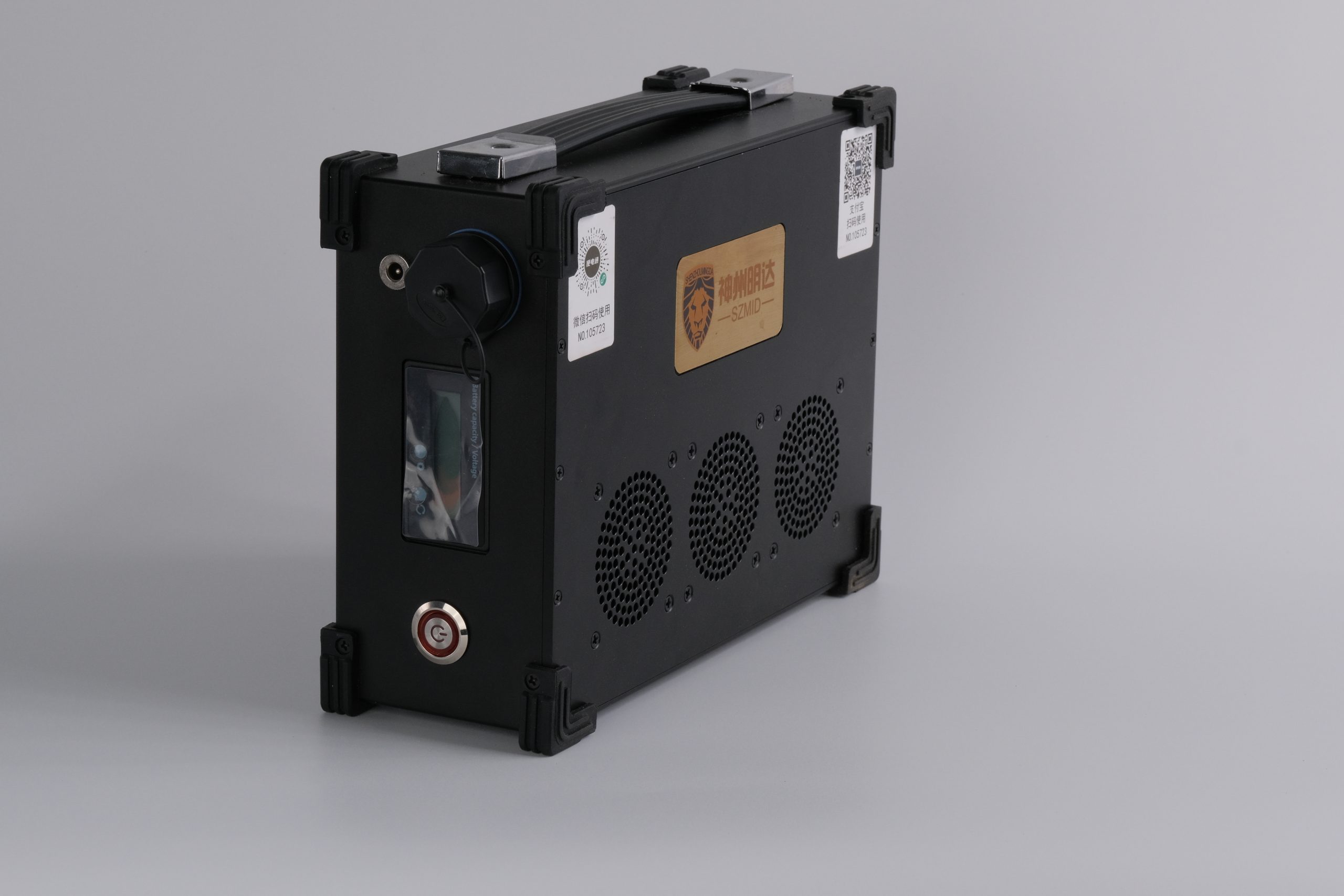

BQX-GK-B110 Portable Signal Detection Device

Product Introduction

The BQX-GK-B110 is a cutting-edge Signal Management Equipment designed for field Cell Phone Detection and identification. This handheld IMSI Catcher implements LTE TDD/FDD technology for precision Signal Acquisition of mobile devices. Functioning as a miniature Communications Base Station, it enables efficient Mobile Signal Interception by redirecting devices to its network for analysis. As a vital Anti-Eavesdropping Device, it performs real-time Signal Monitoring and alerts on unauthorized tracking devices while allowing authorized communications via whitelist management.

Core Features

Real-time Mobile Data Acquisition

Instant capture of IMSI/IMEI/STMSI data across all Chinese carriers (2G/3G/4G)

Designated Frequency Scanning

Targeted scanning displays PCI/TAC/RSRP/bandwidth data (Signal Detection Device)

Multi-Band Concurrent Operation

Supports simultaneous operation across B38/B39/B40/B41/B61/B62/B63/B1/B3/B5/B7/B8/B17/B28

Unauthorized Device Detection

Intelligent alerts for suspicious devices after Base Station Information Collector analysis

Compact & Highly Integrated

Ultra-portable design with low power consumption and configurable modes

Whitelist Management

Ensure authorized device communication while flagging unregistered terminals

Mobile App Configuration

Terminal app controls redirection, location, jamming, and signal management

Periodic Data Capture

Configurable scheduled signal acquisition for continuous Electronic Perimeter Surveillance

Technical Specifications

Parameter	Specification
Operation Modes	LTE TDD / LTE FDD
Frequency Spectrum	LTE TDD: B38, B39, B40, B41, B61, B62, B63 LTE FDD: B1, B3, B5, B7, B8, B17, B28 (Custom bands available)
Frequency Range	325MHz ~ 3.8GHz
Clock Precision	50ppb
Operating Bandwidth	5MHz / 10MHz / 15MHz / 20MHz
Synchronization	GPS / Air Interface / 1588V2
Power Consumption	<9W
Input Voltage	5.5V~14V/DC
Dimensions	250×190×95mm (L×W×H)
RF Output	<3dBm (0.25dB adjustable steps)
Receiver Sensitivity	-98dBm to -100dBm (1dB adjustable steps, 0-76dB range)
Error Vector Magnitude	<2% @64QAM
Processing Unit	2x ARM cores + 2x DSP cores @1GHz
Memory	2GB DDR3 @1600MHz + 256MB Flash
Temperature Range	-40℃ to 65℃
Humidity Range	5% to 95% RH
Reliability	MTBF ≥150,000 hours / MTTR ≤1 hour

Operational Applications

As a portable IMSI/IMEI Catcher, this device provides critical security screening for confidential facilities, executive protection details, and sensitive meeting environments. Its handheld form factor enables mobile Electronic Perimeter Surveillance and impromptu security sweeps. The comprehensive Signal Management capabilities make it ideal for detecting unauthorized tracking devices and hidden transmitters. Low-power operation ensures extended field use as a rapid-deployment Signal Monitoring solution for counter-surveillance operations.
